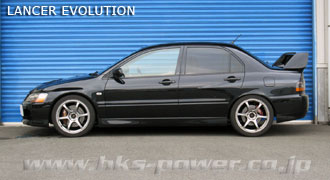

MAXIVSP CT9A FULL KIT

MAXIVSP CT9A FULL KIT

$2,898.00 CAD

HKS SKU: 80250-AM002

Earn [points_amount] when you buy this item.

Description Availability

80250-AM002

Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3		 Drivable range
High - Low *4
FRONT Ride height *1 656 ← 694 ～ 611 662 ～ 611
Against stock -38 ← 0 ～ -83 -32 ～ -83
REAR Ride height *1 629 ← 666 ～　625 666 ～　625
Against stock -37 ← 0 ～ -41 0 ～ -41
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.



Kit information
Spring of Full Kit
  F R
Spring rate N/mm(kgf/mm) 118 ( 12 ) 98 ( 10 )
Free height (mm) 200 200
Spring type Straight Straight
Recommended range to change spring rate N/mm(kgf/mm) ±20 ( 2 ) ±20 ( 2 )
Specification of damper
  F R
Damping force (Rebound/Damping)N* 2403 / 451 1638 / 265
Default position of dial 15 15
Remaining damper stroke (Rebound/Damping)mm 49 / 64 69 / 66
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
  F R
Default Test Drivable limit
High *		 Drivable limit
Low *		 Default Test Drivable limit
High *		 Drivable limit
Low *
Length of
case (mm)		 284 ← 284 266 379 ← 394 376
Spring
Set length(mm)		 249 ← 244 273 267 ← 255 267
Length to ride hight
adjuster (mm)		 42 ← 37 0 114 ← 141 111
Lever ratio 1.08 1.35
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information
  F R
Vehicle weight kg 889 570
Tire size (Air pressure) kPa 245 / 40 - 18 ( 220 ) 245 / 40 - 18 ( 220 )
Wheel size 9 JJ × 18 off 29 9 JJ × 18 off 29
Alignment
(Toe/Camber)		 Test data 0 mm / -2°00' in 2 mm / -2°42'
Standard value 0 ± 2 mm / -2°00' ± 30' in 3 ± 2 mm / -1°00' ± 30'
* Test data at HKS.



Parts List * It may be changed without prior notice.
