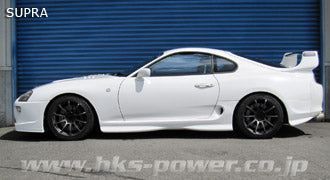

MAXIVSP JZA80 FULL KIT

MAXIVSP JZA80 FULL KIT

$2,494.80 CAD

HKS SKU: 80250-AT002

Earn [points_amount] when you buy this item.

Description Availability

80250-AT002

Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3		 Drivable range
High - Low *4
FRONT Ride height *1 646 643 691 ～ 571 691 ～ 625
Against stock -46 -49 0 ～ -120 0 ～ -67
REAR Ride height *1 643 639 668 ～　570 668 ～　629
Against stock -25 -29 0 ～ -98 0 ～ -39
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.



Kit information
Spring of Full Kit
  F R
Spring rate N/mm(kgf/mm) 216 ( 22 ) 157 ( 16 )
Free height (mm) 170 200
Spring type Straight Straight
Recommended range to change spring rate N/mm(kgf/mm) ±20 ( 2 ) ±20 ( 2 )
Specification of damper
  F R
Damping force (Rebound/Damping)N* 1600 / 450 800 / 400
Default position of dial 15 15
Remaining damper stroke (Rebound/Damping)mm 37 / 62 ( 12 ) 59 / 77 ( 27 )
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
  F R
Default Test Drivable limit
High *		 Drivable limit
Low *		 Default Test Drivable limit
High *		 Drivable limit
Low *
Length of
case (mm)		 364 362 390 362 349 346 368 346
Spring
Set length(mm)		 209 ← ← 219 264 ← ← 272
Length to ride hight
adjuster (mm)		 42 40 68 30 94 91 113 83
Lever ratio 1.78 1.31
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information
  F R
Vehicle weight kg 837 693
Tire size (Air pressure) kPa 265 / 35 - 18 ( 200 ) 265 / 35 - 18 ( 200 )
Wheel size 10 JJ × 18 off 25 10 JJ × 18 off 25
Alignment
(Toe/Camber)		 Test data 0 mm / -3°00' +1 mm / -2°30'
Standard value 0 ± 1 mm / -0°20' ± 30' in 3 ± 1 mm / -1°35' ± 30'
* Test data at HKS.



Parts List * It may be changed without prior notice.
