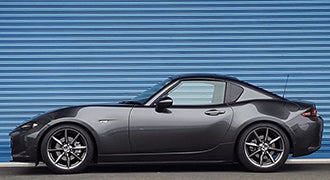

MAXIVSP ND5RC FULL KIT

MAXIVSP ND5RC FULL KIT

$2,494.80 CAD

HKS SKU: 80250-AZ002

Earn [points_amount] when you buy this item.

Description Availability

80250-AZ002

MAZDA
MX-5
2016 -
PE-VPS
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3		 Drivable range
High - Low *4
FRONT Ride height *1 - 621 666 ～ 578 666 ～ 621
Against stock - -45 0 ～ -88 0 ～ -45
REAR Ride height *1 622 622 661 ～　578 661 ～　590
Against stock -46 -46 -7 ～ -90 -7 ～ -78
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.



Kit information
Spring of Full Kit
  F R
Spring rate N/mm(kgf/mm) 78 ( 8 ) 59 ( 6 )
Free height (mm) 200 200
Spring type Straight Straight
Recommended range to change spring rate N/mm(kgf/mm) ±20 ( 2 ) ±20 ( 2 )
Specification of damper
  F R
Damping force (Rebound/Damping)N* 850 / 400 400 / 350
Default position of dial 15 15
Remaining damper stroke (Rebound/Damping)mm 36 / 69 67 / 58
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
  F R
Default Test Drivable limit
High *		 Drivable limit
Low *		 Default Test Drivable limit
High *		 Drivable limit
Low *
Length of
case (mm)		 338 345 370 345 350 - 385 321
Spring
Set length(mm)		 194 200 191 200 264 ← ← ←
Length to ride hight
adjuster (mm)		 30 31 63 30 78 - 113 49
Lever ratio 1.4 1.1
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information
  F R
Vehicle weight kg 567 533
Tire size (Air pressure) kPa 205 / 45 - 17 ( 200 ) 205 / 45 - 17 ( 200 )
Wheel size 7 JJ × 17 inset 45 7 JJ × 17 inset 45
Alignment
(Toe/Camber)		 Test data +0mm / -1°30' +2.5 mm / -2°20'
Standard value IN 1.6 ± 2 mm / -0°30' ± 45' IN 3 ± 2 mm / -1°23' ± 45'
* Test data at HKS.



Parts List * It may be changed without prior notice.
