IE Billet Press Fit Timing Belt Drive Gear For 1.8T & 2.0T FSI Engines (6 bolt gear interface)

4 & 6 BOLT INTERFACES

This press fit timing gear is a direct bolt-on solution for 2.0T FSI EA113 bolt crank damper pulleys.  This gear should be used on 2.0T FSI engines when using either the OEM crank damper pulley or aftermerket 6 bolt crank damper pulleys.  For high power output 1.8T 20V engines, you may want to upgrade the factory 4 bolt interface to this 6 bolt interface gear. In order to upgrade your 1.8T 20V engine to a 6 bolt interface, you need this IE FSI billet press fit timing gear and Fluidampr FSI crank damper pulley (IE part number FD-551211) as a direct swap solution.

TECHNICAL INFORMATION

Factory timing gears are notorious for coming loose in high RPM conditions, leading to the keyways completely breaking, causing timing belt failure. We have also seen failures from the powdered metal gears completely disintegrating from small cracks that develop as the bolt is torqued. As a result from these failures, valves bend and pistons become damaged. To find the ultimate solution for the faulty OE timing gear, IE engineers put in serious work and testing to bring a bullet proof solution to the market. With this product, we have completely redesigned the factory interface, removing the weak factory gear and loose-fitting keyway, replacing it with a solid steel gear with a press-fit interface.

CONSTRUCTION

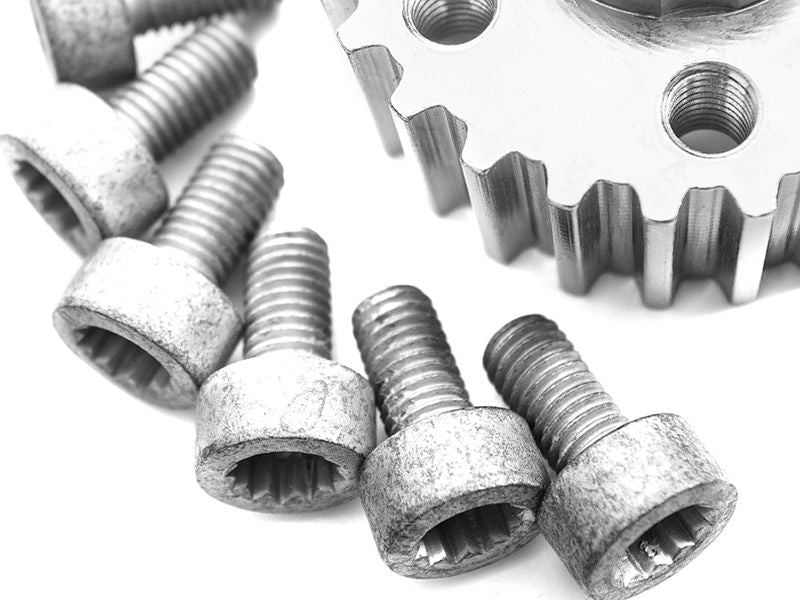

Our gears start out as a solid block of steel and get precisely machined into the finished piece, with special attention taken to the area where the gear meets the crankshaft. Our billet replacement offers a press-fit, so the gear is no longer loose on the end of the crankshaft, eliminating any chance of the gear coming loose and shearing the keyway. We finish them with a bright zinc plated finish to prevent against corrosion.

REQUIRES IE/ARP CRANK DAMPER BOLT

In order to reach proper fitment, the gear must be installed along with an IE/ARP crank damper bolt (IE Part Number: ARP-06A-01).

VEHICLE FITMENT

2.0T FSI EA113 (TIMING BELT DRIVEN) ENGINES

AUDI - A4 2005-2008 (B7) 2.0T FSI
AUDI - A6 2005-2011 (C6) 2.0T FSI
AUDI - A6 Allroad 2005-2011 (C6) 2.0T FSI
AUDI - TT 2008-2015 (MK2 - 8J) 2.0T FSI (TIMING BELT ENGINES ONLY)
AUDI - TTS 2008-2015 (MK2 - 8J) 2.0T FSI
AUDI - A3 2006-2013 (MK2 - 8P) 2.0T FSI (TIMING BELT ENGINES ONLY)
AUDI - S3 2006-2013 (MK2 - 8P) 2.0T FSI
VW - GTI 2006-2009 (MK5) 2.0T FSI (TIMING BELT ENGINES ONLY)
VW - Golf R 2012-2012 (MK6) 2.0T FSI
VW - Jetta & Jetta GLI 2006-2010 (MK5) 2.0T FSI (TIMING BELT ENGINES ONLY)
VW - Passat 2006-2010 (B6) 2.0T FSI (TIMING BELT ENGINES ONLY)
VW - EOS 2006-2015 (1F7) 2.0T FSI (TIMING BELT ENGINES ONLY)

1.8T 20V ENGINES UPGRADE (REQUIRES FSI CRANK DAMPER PULLEY)

AUDI - A4 1996-2001 (B5 - B5.5) 1.8T 20V (LATE 06A ENGINES ONLY)
AUDI - A4 2002-2005 (B6) 1.8T 20V
AUDI - A6 1998-2004 (C5) 1.8T 20V
AUDI - A6 Allroad 1998-2004 (C5) 1.8T 20V
AUDI - TT 2000-2006 (MK1 - 8N) 1.8T 20V
AUDI - A3 1996-2003 (MK1 - 8L) 1.8T 20V
AUDI - S3 1996-2003 (MK1 - 8L) 1.8T 20V
VW - Golf 1999-2005 (MK4) 1.8T 20V
VW - GTI 1999-2005 (MK4) 1.8T 20V
VW - Passat 1998-2005 (B5 - B5.5) 1.8T 20V (LATE 06A ENGINES ONLY)
VW - Jetta & Jetta GLI 1999-2005 (MK4) 1.8T 20V
VW - Beetle 1998-2011 (1C - 9C - 1Y) 1.8T 20V
