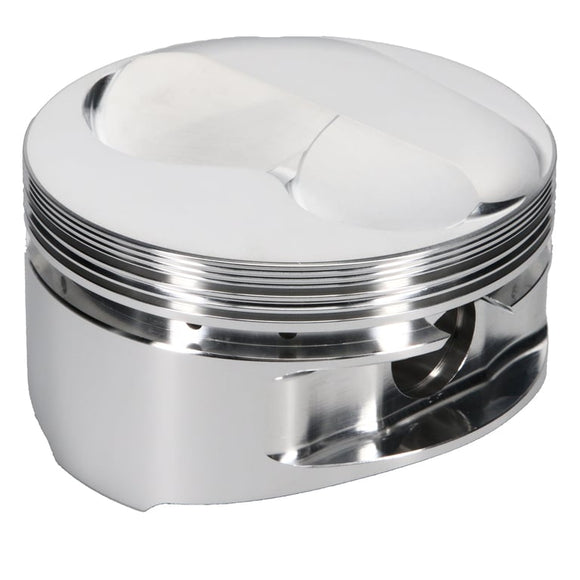

JE Pistons 350 SBC 4.040 in. Bore 1.250 in. CH 13.70 CC Dome Left Piston

SKU: 182014L Piston Series
JE Pistons
Cylinder Head
CHEVROLET 23 DEG 20/30
Bore Diameter
4.040 IN
Piston Head Type
Dome
Compression Height
1.250 IN
Piston Volume
13.70 CC
Piston Material
2618
Piston Quantity
1
Forging Type
Round
Piston Orientation
Left
Piston Average Weight
463 GR
Ring Set Included
No
Top Compression Ring Thickness
0.0640 IN
Second Compression Ring Thickness
0.0640 IN
Wrist Pin Material
5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter
0.927 IN
Wrist Pin Length
2.750 IN
Wrist Pin Wall Thickness
0.150 IN
