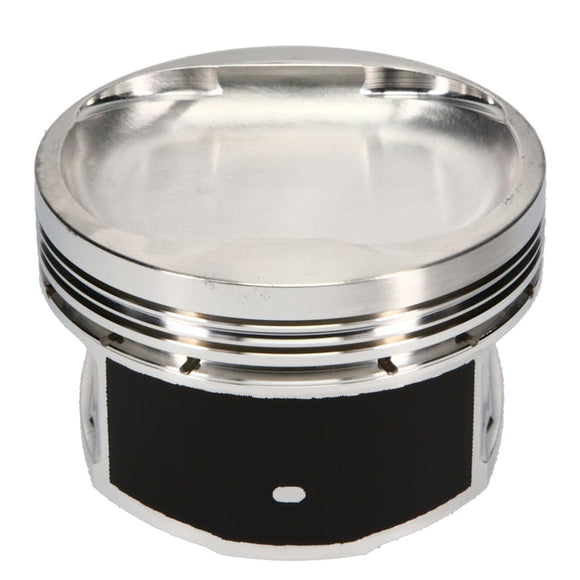

JE Piston Toyota 2JZGTE 8.5:1 Single Piston

SKU: 296933S Piston Series
JE Pistons
Cylinder Head
2JZ-GTE
Bore Diameter
87.00 MM
Piston Head Type
Dish
Compression Height
1.338 IN
Piston Volume
16.40 CC
Piston Material
2618
Piston Quantity
1
Forging Type
FSR
Piston Average Weight
326 GR
Ring Set Included
Yes
Top Compression Ring Thickness
0.0400 IN
Second Compression Ring Thickness
0.0480 IN
Oil Ring Thickness
0.111 IN
Wrist Pin Outer Diameter
0.866 IN
Wrist Pin Length
2.250 IN
Wrist Pin Wall Thickness
0.150 IN
