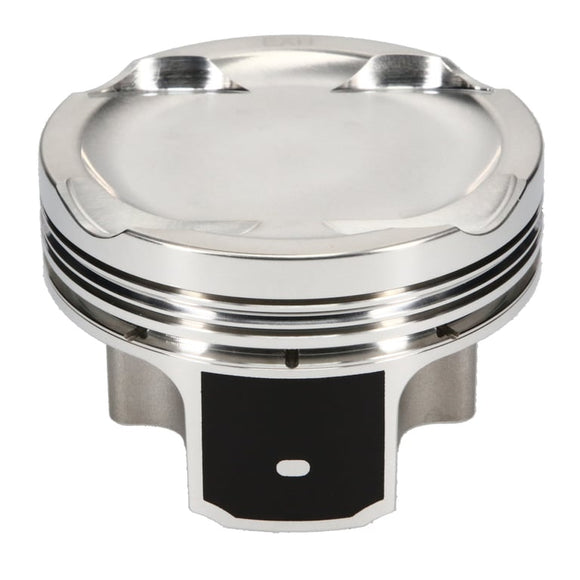

JE Pistons MITSU 4G63 94STR KIT Set of 4 Pistons

SKU: 297480S Piston Series
JE Pistons
Cylinder Head
4G63
Bore Diameter
86.00 MM
Piston Head Type
Dish
Compression Height
1.248 IN
Piston Volume
-18.60 CC
Piston Material
2618
Piston Quantity
1
Forging Type
FSR
Piston Average Weight
305 GR
Ring Set Included
Yes
Top Compression Ring Thickness
0.0400 IN
Second Compression Ring Thickness
0.0480 IN
Oil Ring Thickness
0.111 IN
Wrist Pin Outer Diameter
0.866 IN
Wrist Pin Length
2.250 IN
Wrist Pin Wall Thickness
0.150 IN
Engine Detail
4G63 2001-2007 Evo VII-IX / 22 mm Pin
