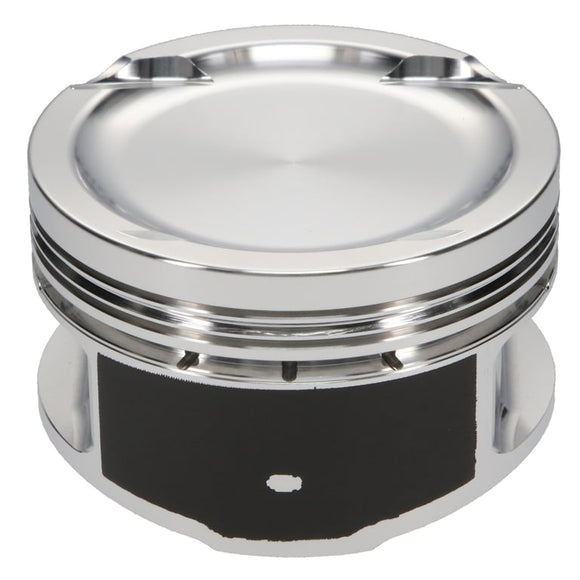

JE Pistons VW 2.0T TSI (22mm Pin) 83mm Bore 9.6:1 CR -7.1cc Dish Piston (Single)

SKU: 345814S Piston Series
JE Pistons
Cylinder Head
2.0 TSI
Bore Diameter
83.00 MM
Piston Head Type
Dish
Compression Height
1.165 IN
Piston Volume
-7.80 CC
Piston Material
2618
Piston Quantity
1
Forging Type
Round
Ring Set Included
Yes
Top Compression Ring Thickness
0.0400 IN
Second Compression Ring Thickness
0.0480 IN
Oil Ring Thickness
0.111 IN
Wrist Pin Material
5115 Low Carbon Steel, Case Hardened
Wrist Pin Length
2.250 IN
Wrist Pin Wall Thickness
0.150 IN
Engine Detail
2.0T TSI 2013-2015 22 mm Pin
