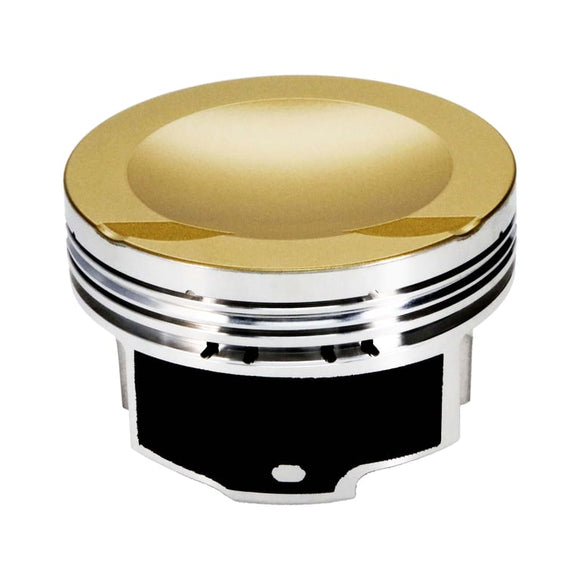

JE Pistons Audi TT RS 2.5 TFSI 5-Cyl Ultra Series 82.5mm Bore Piston Kit (Single)

SKU: 367846S Piston Series
JE Ultra Series
Cylinder Head
R5 TFSI 20V
Bore Diameter
82.50 MM
Piston Head Type
Dish
Compression Height
1.165 IN
Piston Volume
-7.50 CC
Piston Material
2618
Forging Type
FSR
Piston Average Weight
301 GR
Ring Set Included
Yes
Top Compression Ring Thickness
0.0395 IN
Second Compression Ring Thickness
0.0480 IN
Oil Ring Thickness
0.111 IN
Wrist Pin Material
9310 Nickel Carbon Steel Alloy
Wrist Pin Length
2.250 IN
Wrist Pin Wall Thickness
0.230 IN
Engine Detail
2.5L TFSI TT RS 20V
