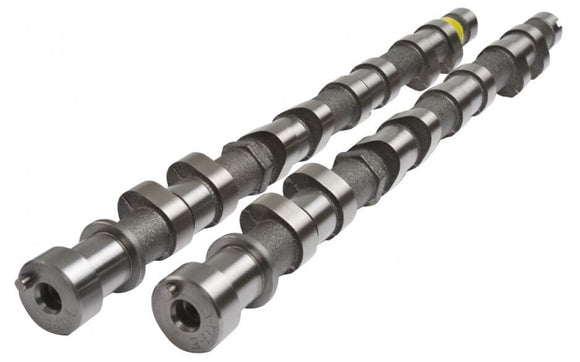

KELFORD MITSUBISHI 4G63 EVO 1-3 SOLID LIFTER RACE CAMS

KELFORD MITSUBISHI 4G63 EVO 1-3 SOLID LIFTER RACE CAMS

$841.88 CAD $886.52 CAD Save $44.64 CAD

Kelford Cams SKU: KEL1-SLX294

Earn [points_amount] when you buy this item.

Description Availability

1-SLX294

294° drag racing cams for extreme boost and high RPM engines. Turbo sizing 76mm+. Fuel type ethanol blend or methanol. Not for OEM hydraulic lifters, must convert to solid lifter. Kelford Cams recommend valve spring KVS63-EXTREME.

Camshaft Specifications

ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Mitsubishi
4G63T EVO 1-3 Solid Lifter
1-SLX294
VALVE CLEARANCE:
INTAKE:
0.20mm
SET
COLD
EXHAUST:
0.20mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
7.14mm
EXHAUST:
7.14mm
ROCKER RATIO:
INTAKE:
1.73
EXHAUST:
1.73
NETT VALVE LIFT:
INTAKE:
12.00mm
EXHAUST:
12.00mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
294°
EXHAUST:
300°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
252°
EXHAUST:
258°
TIMING AT
1.00mm VALVE LIFT
IVO:
16° BTDC
IVC:
56° ABDC
EVO:
67° BBDC
EVC:
11° ATDC
SUGGESTED CENTRELINES:
INTAKE:
110°
EXHAUST:
118°
LIFT AT TDC
VALVE
INTAKE:
2.50mm
EXHAUST:
1.81mm
