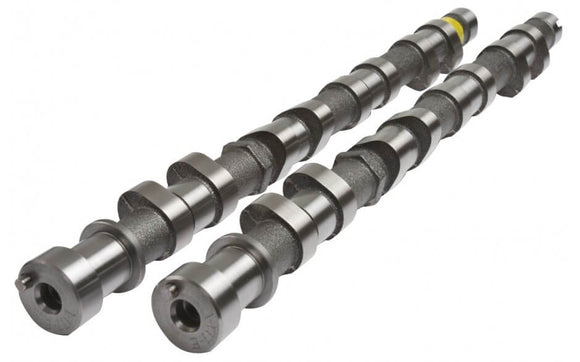

KELFORD MITSUBISHI 4G63 VR4 EVO 1-3 PERFORMANCE CAM SET

KELFORD MITSUBISHI 4G63 VR4 EVO 1-3 PERFORMANCE CAM SET

$841.88 CAD $886.52 CAD Save $44.64 CAD

Kelford Cams SKU: KEL1-TX268

Earn [points_amount] when you buy this item.

Description Availability

1-TX268

EVO 1-3/VR4 Galant 268° cams for street, strip and track engines in the 350-600hp range. Great with E85 and similar ethanol blend fuels. Suits 48-58mm turbo. Still maintains good throttle response, improved mid-range power. For up to 8000rpm and 35psi boost Kelford Cams recommend valve spring KVS63-BTK.

Camshaft Specifications

ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Mitsubishi
4G63T EVO 1-3 Hydraulic Lifter
1-TX268
VALVE CLEARANCE:
INTAKE:
Hydraulic
SET

EXHAUST:
Hydraulic
SET

AT THE:

AT THE:

CAM LIFT:
INTAKE:
6.36mm
EXHAUST:
6.07mm
ROCKER RATIO:
INTAKE:
1.73
EXHAUST:
1.73
NETT VALVE LIFT:
INTAKE:
11.00mm
EXHAUST:
10.50mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
264°
EXHAUST:
268°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
216°
EXHAUST:
220°
TIMING AT
1.00mm VALVE LIFT
IVO:
1° BTDC
IVC:
35° ABDC
EVO:
43° BBDC
EVC:
3° BTDC
SUGGESTED CENTRELINES:
INTAKE:
107°
EXHAUST:
113°
LIFT AT TDC
VALVE
INTAKE:
1.10mm
EXHAUST:
0.84mm
