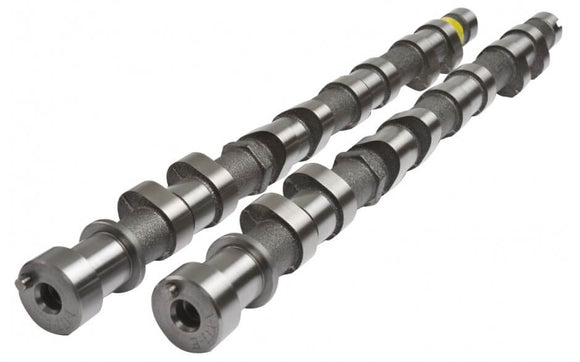

KELFORD MITSUBISHI 4G63 VR4 EVO 1-3 PERFORMANCE CAM SET

KELFORD MITSUBISHI 4G63 VR4 EVO 1-3 PERFORMANCE CAM SET

$841.88 CAD $886.52 CAD Save $44.64 CAD

Kelford Cams SKU: KEL1-TX272-L

Earn [points_amount] when you buy this item.

Description Availability

1-TX272-L

4G36 EVO 1-3/Galant VR4 Lower Lift 272° camshaft designed to work with OEM valve springs. Rough idle note with exhaust upgrade. Increase in mid-high rpm power with upgraded turbo. Upgraded turbo size range 48-58mm compressor inducer. For high mileage engines Kelford Cams recommend valve spring KVS63 which uses the OEM retainer.

Camshaft Specifications

ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Mitsubishi
4G63T EVO 1-3 Hydraulic Lifter
1-TX272-L
VALVE CLEARANCE:
INTAKE:
Hydraulic
SET

EXHAUST:
Hydraulic
SET

AT THE:

AT THE:

CAM LIFT:
INTAKE:
5.78mm
EXHAUST:
5.78mm
ROCKER RATIO:
INTAKE:
1.73
EXHAUST:
1.73
NETT VALVE LIFT:
INTAKE:
10.00mm
EXHAUST:
10.00mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
272°
EXHAUST:
272°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
226°
EXHAUST:
226°
TIMING AT
1.00mm VALVE LIFT
IVO:
6° BTDC
IVC:
40° ABDC
EVO:
48° BBDC
EVC:
2° BTDC
SUGGESTED CENTRELINES:
INTAKE:
107°
EXHAUST:
115°
LIFT AT TDC
VALVE
INTAKE:
1.83mm
EXHAUST:
1.12mm
