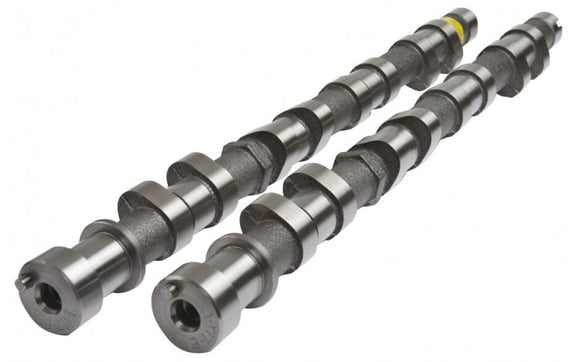

1-TX272R
The ultimate Mitsubishi Lancer EVO 1-3/VR4 272° on the market. Dyno proven to be the best available to date. High lift profile design with high rpm valve train stability. Suited for 450-700hp high rpm racing 4G63 engines. Suits turbo sizing in the 54-68mm range. Great with E85 and similar ethanol blend fuels. For up to 9500rpm and 40psi boost Kelford Cams recommend valve spring KVS63-BTK.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Mitsubishi
4G63T EVO 1-3 Hydraulic Lifter
1-TX272R
VALVE CLEARANCE:
INTAKE:
Hydraulic
SET
EXHAUST:
Hydraulic
SET
AT THE:
AT THE:
CAM LIFT:
INTAKE:
6.79mm
EXHAUST:
6.79mm
ROCKER RATIO:
INTAKE:
1.73
EXHAUST:
1.73
NETT VALVE LIFT:
INTAKE:
11.75mm
EXHAUST:
11.75mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
272°
EXHAUST:
272°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
232°
EXHAUST:
232°
TIMING AT
1.00mm VALVE LIFT
IVO:
9° BTDC
IVC:
43° ABDC
EVO:
49° BBDC
EVC:
3° ATDC
SUGGESTED CENTRELINES:
INTAKE:
107°
EXHAUST:
113°
LIFT AT TDC
VALVE
INTAKE:
1.83mm
EXHAUST:
1.07mm
