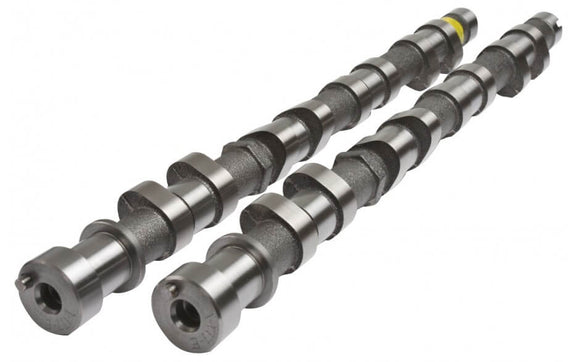

KELFORD MITSUBISHI 4G63 VR4 EVO 1-3 PERFORMANCE CAM SET

KELFORD MITSUBISHI 4G63 VR4 EVO 1-3 PERFORMANCE CAM SET

$841.88 CAD $886.52 CAD Save $44.64 CAD

Kelford Cams SKU: KEL1-TX294

Earn [points_amount] when you buy this item.

Description Availability

1-TX294

294° drag racing cams for extreme boost and high RPM engines. Turbo sizing 76mm+. Fuel type ethanol blend or methanol. Kelford Cams recommend valve spring KVS63-EXTREME.

Camshaft Specifications

ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Mitsubishi
4G63T EVO 1-3 Hydraulic Lifter
1-TX294
VALVE CLEARANCE:
INTAKE:
Hydraulic
SET

EXHAUST:
Hydraulic
SET

AT THE:

AT THE:

CAM LIFT:
INTAKE:
6.94mm
EXHAUST:
6.94mm
ROCKER RATIO:
INTAKE:
1.73
EXHAUST:
1.73
NETT VALVE LIFT:
INTAKE:
12.00mm
EXHAUST:
12.00mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
294°
EXHAUST:
300°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
250°
EXHAUST:
256°
TIMING AT
1.00mm VALVE LIFT
IVO:
15° BTDC
IVC:
55° ABDC
EVO:
66° BBDC
EVC:
10° ATDC
SUGGESTED CENTRELINES:
INTAKE:
110°
EXHAUST:
118°
LIFT AT TDC
VALVE
INTAKE:
2.39mm
EXHAUST:
1.88mm
