176-C

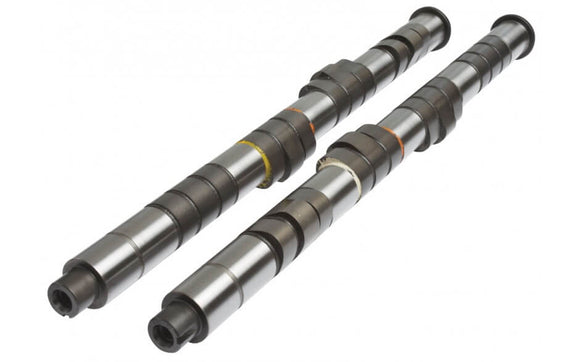

Naturally aspirated racing cams for B16A/B18C powered circuit and track cars. Suits engines with high compression, ported cylinder head and good intake and exhaust systems. Large low lobe spec for strong mid-range power. VTEC crossover around 6k rpm depending on engine. VTEC will pull to around 10k rpm depending on engine. Rough idle on plenum manifold. Requires valve spring upgrade, Kelford Cams recommend KVS18-K. Primary lobe spec: Intake: 270°/11.0mm | Exhaust: 262°/10.0mm
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Honda
B16A/B18C
176-C
VALVE CLEARANCE:
INTAKE:
0.30mm
SET
HOT
EXHAUST:
0.30mm
SET
HOT
AT THE:
VALVE
AT THE:
VALVE
CAM LIFT:
INTAKE:
7.81mm
EXHAUST:
7.48mm
ROCKER RATIO:
INTAKE:
1.55
EXHAUST:
1.55
NETT VALVE LIFT:
INTAKE:
11.80mm
EXHAUST:
11.30mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
294°
EXHAUST:
286°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
264°
EXHAUST:
256°
TIMING AT
1.00mm VALVE LIFT
IVO:
30° BTDC
IVC:
54° ABDC
EVO:
52° BBDC
EVC:
24° ATDC
SUGGESTED CENTRELINES:
INTAKE:
102°
EXHAUST:
104°
LIFT AT TDC
VALVE
INTAKE:
4.70mm
EXHAUST:
3.86mm
