180-C

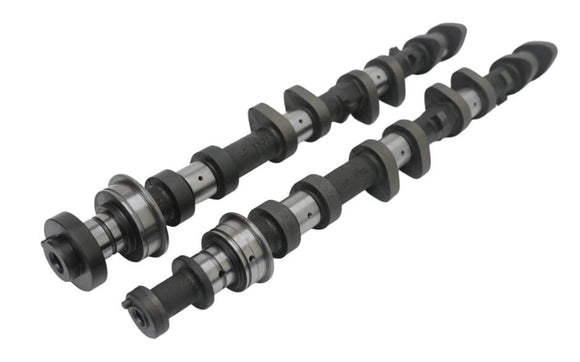

Toyota 3RZ 290° drag racing cams for wide open throttle and high rpm power. Suits 3RZ engines running 70mm+ turbocharger. Ideal for alcohol based fuels. Designed to keep the valvetrain stable even on stock buckets. Kelford Cams recommend KVS180-BT valve spring.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
2RZFE/3RZFE
180-C
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.25mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
10.85mm
EXHAUST:
10.45mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
10.60mm
EXHAUST:
10.20mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
290°
EXHAUST:
290°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
252°
EXHAUST:
252°
TIMING AT
1.00mm VALVE LIFT
IVO:
16° BTDC
IVC:
56° ABDC
EVO:
64° BBDC
EVC:
8° ATDC
SUGGESTED CENTRELINES:
INTAKE:
110°
EXHAUST:
118°
LIFT AT TDC
VALVE
INTAKE:
2.67mm
EXHAUST:
1.96mm
