184-D

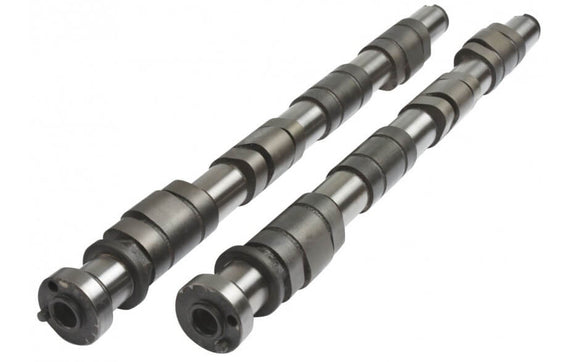

The ultimate street Naturally aspirated cams for SR16VE/SR20VE engines. Nissan N1 main lobe with 20V spec side lobes. Still maintains good street drivability and mild idle off-VVL. The 184-D VVL lobes open up top end power in the 5.5k-9k rpm range for track use or spirited driving. Must have basic intake and exhaust system upgrades. Kelford Cams recommend KVS10-BT valve spring kit. Primary lobe spec: Intake: 250°/10.2mm | Exhaust: 246°/8.3mm
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Nissan
SR16VE/SR20VE
184-D
VALVE CLEARANCE:
INTAKE:
0.20mm
SET
COLD
EXHAUST:
0.25mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
7.70mm
EXHAUST:
7.69mm
ROCKER RATIO:
INTAKE:
1.6
EXHAUST:
1.6
NETT VALVE LIFT:
INTAKE:
12.00mm
EXHAUST:
11.90mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
300°
EXHAUST:
300°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
255°
EXHAUST:
252°
TIMING AT
1.00mm VALVE LIFT
IVO:
25.5° BTDC
IVC:
49.5° ABDC
EVO:
50° BBDC
EVC:
22° ATDC
SUGGESTED CENTRELINES:
INTAKE:
102°
EXHAUST:
104°
LIFT AT TDC
VALVE
INTAKE:
4.03mm
EXHAUST:
3.49mm
