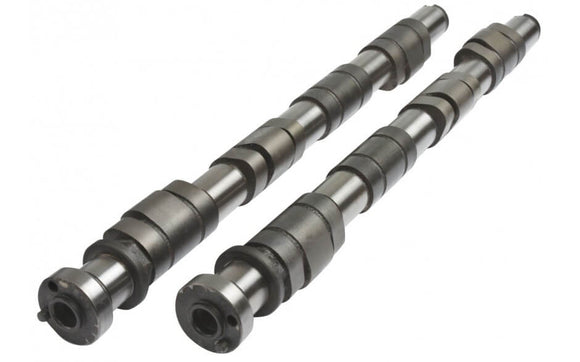

184-ST
The ultimate street/track turbo cams to suit 400-700hp SR16VE/SR20VE engines. Suits turbo sizing 54-67mm. 184-ST has the same primary lobes as the smaller 184-LT so maintains good street drivability off-VVL. VVL activates around 5.5k rpm pulling to around 9k rpm depending on engine. Great with E85. Kelford Cams recommend KVS10-BT valve spring kit. Primary lobe spec: Intake: 250°/10.2mm | Exhaust: 246°/8.3mm
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Nissan
SR16VE/SR20VE
184-ST
VALVE CLEARANCE:
INTAKE:
0.20mm
SET
COLD
EXHAUST:
0.25mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
6.83mm
EXHAUST:
7.03mm
ROCKER RATIO:
INTAKE:
1.6
EXHAUST:
1.6
NETT VALVE LIFT:
INTAKE:
10.60mm
EXHAUST:
10.60mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
290°
EXHAUST:
290°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
246°
EXHAUST:
246°
TIMING AT
1.00mm VALVE LIFT
IVO:
15° BTDC
IVC:
51° ABDC
EVO:
59° BBDC
EVC:
7° ATDC
SUGGESTED CENTRELINES:
INTAKE:
108°
EXHAUST:
116°
LIFT AT TDC
VALVE
INTAKE:
2.10mm
EXHAUST:
1.42mm
