184-STK

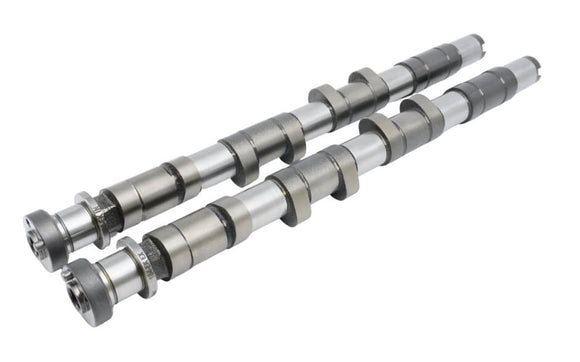

Racing cams to suit 400-700hp turbocharged SR16VE/SR20VE engines. Suits turbo sizing 54-67mm. Centre lobe removed, large lobe profile on outer lobes to allow for VVL system to be removed for less valvetrain mass. These will make power to around 9k rpm. Great with E85. Kelford Cams recommend KVS10-BT valve spring kit.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Nissan
SR16VE/SR20VE
184-STK
VALVE CLEARANCE:
INTAKE:
0.20mm
SET
COLD
EXHAUST:
0.25mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
6.83mm
EXHAUST:
6.88mm
ROCKER RATIO:
INTAKE:
1.6
EXHAUST:
1.6
NETT VALVE LIFT:
INTAKE:
10.60mm
EXHAUST:
10.60mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
290°
EXHAUST:
290°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
246°
EXHAUST:
246°
TIMING AT
1.00mm VALVE LIFT
IVO:
15° BTDC
IVC:
51° ABDC
EVO:
59° BBDC
EVC:
7° ATDC
SUGGESTED CENTRELINES:
INTAKE:
108°
EXHAUST:
116°
LIFT AT TDC
VALVE
INTAKE:
2.68mm
EXHAUST:
1.76mm
