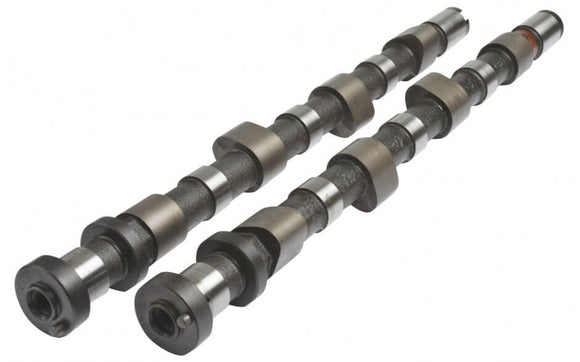

188-B
Ultimate drift cams featuring maximum lobe area and low duration for fast spool and more top end power. Suits 58mm-66mm turbo. Requires valve spring upgrade. Kelford Cams recommend KVS93 or KVS93-BT over 29psi boost.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Nissan
SR20DET
188-B
VALVE CLEARANCE:
INTAKE:
Hydraulic
SET
EXHAUST:
Hydraulic
SET
AT THE:
AT THE:
CAM LIFT:
INTAKE:
7.74mm
EXHAUST:
7.42mm
ROCKER RATIO:
INTAKE:
1.55
EXHAUST:
1.55
NETT VALVE LIFT:
INTAKE:
12.00mm
EXHAUST:
11.50mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
268°
EXHAUST:
272°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
226°
EXHAUST:
230°
TIMING AT
1.00mm VALVE LIFT
IVO:
5° BTDC
IVC:
41° ABDC
EVO:
50° BBDC
EVC:
0° TDC
SUGGESTED CENTRELINES:
INTAKE:
108°
EXHAUST:
115°
LIFT AT TDC
VALVE
INTAKE:
1.52mm
EXHAUST:
1.06mm
