188-C

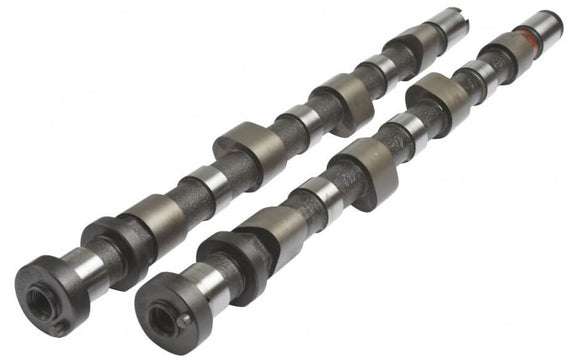

280° racing cams to suit engines with 64mm-72mm turbo. Best suited to wide open throttle and high rpm power. Requires valve spring upgrade. Kelford Cams recommend KVS93-BT.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Nissan
SR20DET
188-C
VALVE CLEARANCE:
INTAKE:
Hydraulic
SET
EXHAUST:
Hydraulic
SET
AT THE:
AT THE:
CAM LIFT:
INTAKE:
8.06mm
EXHAUST:
7.74mm
ROCKER RATIO:
INTAKE:
1.55
EXHAUST:
1.55
NETT VALVE LIFT:
INTAKE:
12.50mm
EXHAUST:
12.00mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
280°
EXHAUST:
280°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
236°
EXHAUST:
236°
TIMING AT
1.00mm VALVE LIFT
IVO:
8° BTDC
IVC:
48° ABDC
EVO:
53° BBDC
EVC:
3° ATDC
SUGGESTED CENTRELINES:
INTAKE:
110°
EXHAUST:
115°
LIFT AT TDC
VALVE
INTAKE:
1.82mm
EXHAUST:
1.28mm
