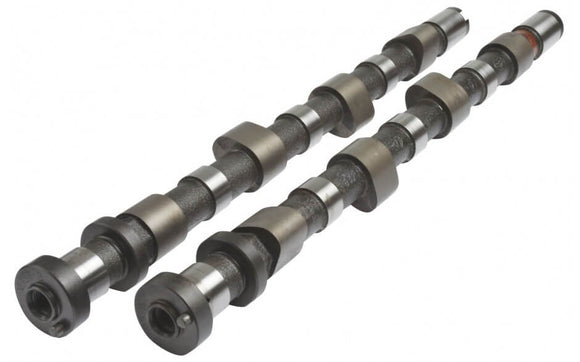

188-EZ
Drop-in cam to suit factory valve springs. Excellent throttle response and improved low to mid-range power. Ideal for small frame turbo 46mm-54mm. Must retain stock rev limit and not exceed 22psi of boost with OEM springs. For high mileage engines or higher boost Kelford Cams recommend KVS93 or KVS93-BT valve spring upgrade.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Nissan
SR20DET
188-EZ
VALVE CLEARANCE:
INTAKE:
Hydraulic
SET
EXHAUST:
Hydraulic
SET
AT THE:
AT THE:
CAM LIFT:
INTAKE:
7.29mm
EXHAUST:
7.29mm
ROCKER RATIO:
INTAKE:
1.55
EXHAUST:
1.55
NETT VALVE LIFT:
INTAKE:
11.30mm
EXHAUST:
11.30mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
254°
EXHAUST:
254°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
220°
EXHAUST:
220°
TIMING AT
1.00mm VALVE LIFT
IVO:
2° BTDC
IVC:
38° ABDC
EVO:
42° BBDC
EVC:
2° BTDC
SUGGESTED CENTRELINES:
INTAKE:
108°
EXHAUST:
112°
LIFT AT TDC
VALVE
INTAKE:
1.17mm
EXHAUST:
0.84mm
