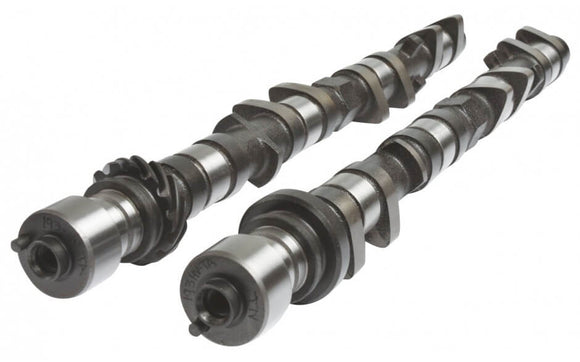

KELFORD TOYOTA 4A-GE 16V (STOCK SHIM) PERFORMANCE CAM

KELFORD TOYOTA 4A-GE 16V (STOCK SHIM) PERFORMANCE CAM

$1,064.04 CAD $1,119.32 CAD Save $55.28 CAD

Kelford Cams SKU: KEL193-B

Earn 1 Point on this purchase. Learn more
Description Availability

193-B

Toyota 4AGE 16V Stock Shim Camshafts, 284°/278° cams for improved mid-high rpm power. Great for rally and circuit racing. Must have free flowing intake and exhaust upgrades. Rough idle on plenum manifolds. Will pull to around 8.5k rpm depending on engine. Kelford Cams recommends KVS101-16 valve spring upgrade.

Camshaft Specifications

ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
4AGE 16V
193-B
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.30mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
9.45mm
EXHAUST:
8.80mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
9.20mm
EXHAUST:
8.50mm
ADVERTISED DURATION AT
0.30mm
INTAKE:
284°
EXHAUST:
278°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
244°
EXHAUST:
236°
TIMING AT
1.00mm VALVE LIFT
IVO:
18° BTDC
IVC:
46° ABDC
EVO:
44° BBDC
EVC:
12° ATDC
SUGGESTED CENTRELINES:
INTAKE:
104°
EXHAUST:
106°
LIFT AT TDC
VALVE
INTAKE:
2.70mm
EXHAUST:
2.06mm
