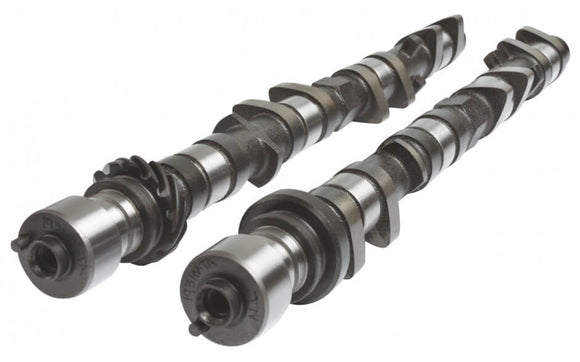

KELFORD TOYOTA 4A-GE 16V (STOCK SHIM) PERFORMANCE CAM

KELFORD TOYOTA 4A-GE 16V (STOCK SHIM) PERFORMANCE CAM

$1,064.04 CAD $1,119.32 CAD Save $55.28 CAD

Kelford Cams SKU: KEL193-C

Earn 1 Point on this purchase. Learn more
Description Availability

193-C

4AGE 16V Stock Shim 298°/288° cams for Naturally aspirated racing 4AGE 16V engines with increased compression, ported cylinder head and well designed intake and exhaust system. More top end power than the 193-B cam, pulling to around 9k rpm depending on engine. Kelford Cams recommends KVS101-16 valve spring.

Camshaft Specifications

ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
4AGE 16V
193-C
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.30mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
9.77mm
EXHAUST:
9.45mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
9.52mm
EXHAUST:
9.15mm
ADVERTISED DURATION AT
0.30mm
INTAKE:
298°
EXHAUST:
288°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
254°
EXHAUST:
244°
TIMING AT
1.00mm VALVE LIFT
IVO:
27° BTDC
IVC:
47° ABDC
EVO:
46° BBDC
EVC:
18° ATDC
SUGGESTED CENTRELINES:
INTAKE:
100°
EXHAUST:
104°
LIFT AT TDC
VALVE
INTAKE:
3.56mm
EXHAUST:
2.80mm
