193-D

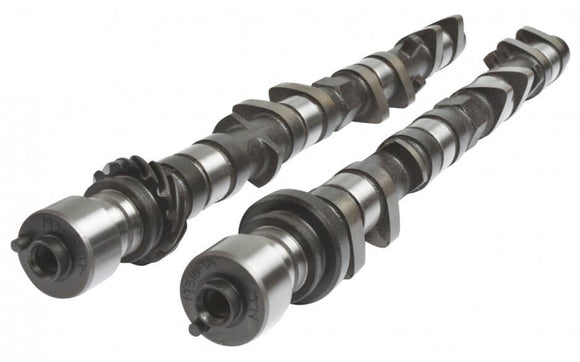

Toyota 4AGE 16V Camshaft for Naturally Aspirated racing engines with high compression, ported cylinder head and well designed intake and exhaust system. More top end power than the 193-C cam, pulling to around 10k rpm depending on engine. Ideal for lightweight chassis such as single seater or sports car to help get the engine into the power band more easily. Kelford Cams recommends KVS101-BT valve spring.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
4AGE 16V
193-D
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.30mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
10.25mm
EXHAUST:
9.65mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
10.00mm
EXHAUST:
9.35mm
ADVERTISED DURATION AT
0.30mm
INTAKE:
314°
EXHAUST:
308°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
272°
EXHAUST:
266°
TIMING AT
1.00mm VALVE LIFT
IVO:
37° BTDC
IVC:
55° ABDC
EVO:
57° BBDC
EVC:
29° ATDC
SUGGESTED CENTRELINES:
INTAKE:
99°
EXHAUST:
104°
LIFT AT TDC
VALVE
INTAKE:
4.47mm
EXHAUST:
3.63mm
