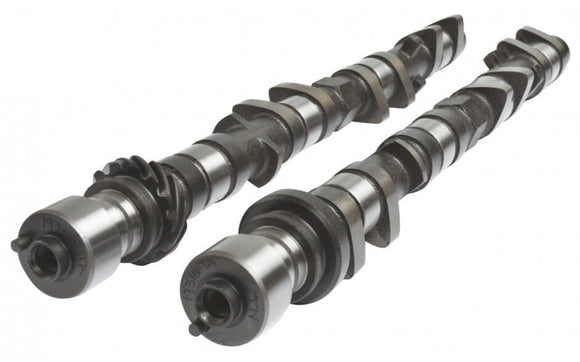

193HV-A
High lift Rally Cams to suit racing 4AGE 16V engines with big valves, increased compression and well designed intake and exhaust system. Good mid-high rpm power. 'HV' high velocity cam profile, more cam sweep area than the stock shim will allow. Must convert to shimless or shim under bucket style lifter. Kelford Cams recommends KVS101-BT valve spring.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
4AGE 16V
193HV-A
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.30mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
10.55mm
EXHAUST:
10.40mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
10.30mm
EXHAUST:
10.10mm
ADVERTISED DURATION AT
0.30mm
INTAKE:
290°
EXHAUST:
282°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
248°
EXHAUST:
240°
TIMING AT
1.00mm VALVE LIFT
IVO:
25° BTDC
IVC:
43° ABDC
EVO:
45° BBDC
EVC:
15° ATDC
SUGGESTED CENTRELINES:
INTAKE:
99°
EXHAUST:
105°
LIFT AT TDC
VALVE
INTAKE:
3.60mm
EXHAUST:
2.53mm
