193HV-B

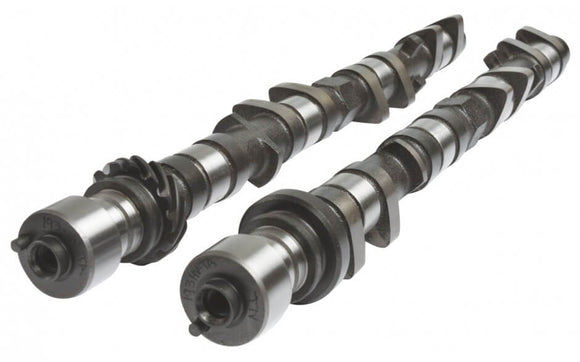

Toyota 4AGE Racing Camshaft: High Lift cams to suit professionally built naturally aspirated 4AGE 16V competition engines. Will pull to around 9.5k rpm depending on engine. 'HV' high velocity camshaft profile, more cam sweep area than the stock shim will allow. Must convert to shimless or shim under bucket style lifter. Kelford Cams recommends KVS101-BT valve springs.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
4AGE 16V
193HV-B
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.30mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
10.75mm
EXHAUST:
10.55mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
10.50mm
EXHAUST:
10.25mm
ADVERTISED DURATION AT
0.30mm
INTAKE:
300°
EXHAUST:
294°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
258°
EXHAUST:
248°
TIMING AT
1.00mm VALVE LIFT
IVO:
30° BTDC
IVC:
48° ABDC
EVO:
47° BBDC
EVC:
21° ATDC
SUGGESTED CENTRELINES:
INTAKE:
99°
EXHAUST:
103°
LIFT AT TDC
VALVE
INTAKE:
4.22mm
EXHAUST:
3.32mm
