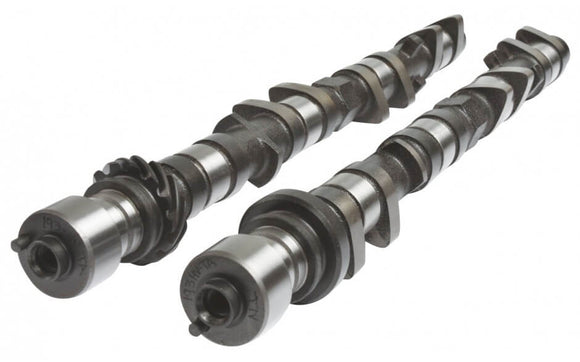

KELFORD TOYOTA 4A-GE 16V (SHIM UNDER BUCKET) TURBO PERFORMANCE CAM

KELFORD TOYOTA 4A-GE 16V (SHIM UNDER BUCKET) TURBO PERFORMANCE CAM

$1,064.04 CAD $1,119.32 CAD Save $55.28 CAD

Kelford Cams SKU: KEL193HV-T

Earn 1 Point on this purchase. Learn more
Description Availability

193HV-T

4AGE-16V High Lift Cams for high RPM drag racing engines. Suits turbo sizing 48-58mm. Great with E85. 'HV' high velocity cam profile, more cam sweep area than the stock shim will allow. Must convert to shimless or shim under bucket style lifter. Kelford Cams recommends KVS101-BT valve spring.

Camshaft Specifications

ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
4AGE 16V
193HV-T
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.30mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
10.40mm
EXHAUST:
10.30mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
10.15mm
EXHAUST:
10.00mm
ADVERTISED DURATION AT
0.30mm
INTAKE:
272°
EXHAUST:
280°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
232°
EXHAUST:
240°
TIMING AT
1.00mm VALVE LIFT
IVO:
8° BTDC
IVC:
44° ABDC
EVO:
58° BBDC
EVC:
2° ATDC
SUGGESTED CENTRELINES:
INTAKE:
108°
EXHAUST:
118°
LIFT AT TDC
VALVE
INTAKE:
1.86mm
EXHAUST:
1.16mm

    This website does not show live stock.

    If the product is in stock we ship same/next day.

    If a product needs to be ordered in the typical wait time is 1-2 weeks.

    Shipping times vary depending if the part is in stock at our warehouse and which shipping option is chosen at checkout.

    Please contact us for an accurate ETA and availability.
