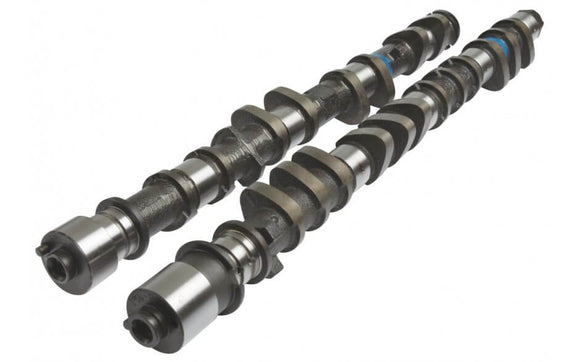

194-B
270° cams for improved mid-high rpm power in mildly tuned NA engines. Great for rally and circuit racing. Must have free flowing intake and exhaust upgrades. Will pull to around 8.5-9k rpm depending on engine. Retains VVT on intake. Kelford Cams recommends KVS51-B valve spring upgrade.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
4AGE 20V
194-B
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.30mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
8.95mm
EXHAUST:
8.95mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
8.70mm
EXHAUST:
8.65mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
270°
EXHAUST:
270°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
232°
EXHAUST:
232°
TIMING AT
1.00mm VALVE LIFT
IVO:
4° ATDC
IVC:
56° ABDC
EVO:
41° BBDC
EVC:
11° ATDC
SUGGESTED CENTRELINES:
INTAKE:
120°
EXHAUST:
105°
LIFT AT TDC
VALVE
INTAKE:
0.63mm
EXHAUST:
2.00mm
