194-C

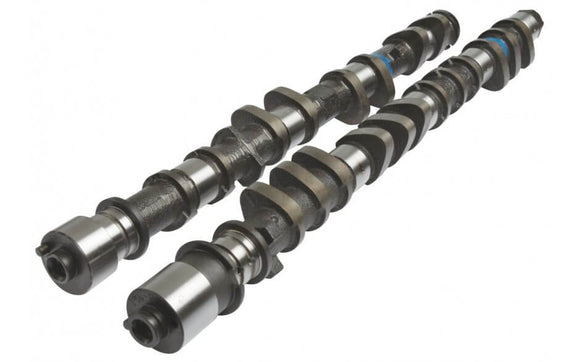

Toyota 4AGE 20V Camshafts for Naturally Aspirated racing engines with increased compression, mildly ported cylinder head and well designed intake and exhaust system. More top end power than the 194-B cam, pulling to around 9-9.5k rpm depending on engine. Great for circuit racing or rally with close ratio gearbox. Kelford recommends VVT delete on intake, using adjustable gears for fixed timing. Kelford Cams recommends KVS51-B valve spring.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
4AGE 20V
194-C
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.30mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
9.55mm
EXHAUST:
8.80mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
9.30mm
EXHAUST:
8.50mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
284°
EXHAUST:
278°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
248°
EXHAUST:
242°
TIMING AT
1.00mm VALVE LIFT
IVO:
19° BTDC
IVC:
49° ABDC
EVO:
46° BBDC
EVC:
16° ATDC
SUGGESTED CENTRELINES:
INTAKE:
105°
EXHAUST:
105°
LIFT AT TDC
VALVE
INTAKE:
1.29mm
EXHAUST:
2.52mm
