194-E

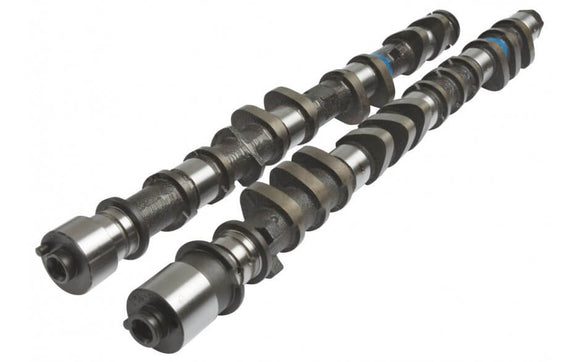

4AGE 20V Naturally Aspirated Camshaft. Designed for professionally built high rpm 4A-GE 20V race engine with high compression, ported cylinder head and well designed intake and exhaust system. Great with 7A based rotating assembly and stroker kits. More top end power than the 194-D camshaft, pulling to approx 10k+ RPM depending on engine. Recommends VVT delete on intake, using adjustable gears for fixed timing. Kelford Cams recommends KVS51-B valve spring.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
4AGE 20V
194-E
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.30mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
10.75mm
EXHAUST:
10.30mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
10.50mm
EXHAUST:
10.00mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
302°
EXHAUST:
290°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
266°
EXHAUST:
250°
TIMING AT
1.00mm VALVE LIFT
IVO:
33° BTDC
IVC:
53° ABDC
EVO:
50° BBDC
EVC:
20° ATDC
SUGGESTED CENTRELINES:
INTAKE:
100°
EXHAUST:
105°
LIFT AT TDC
VALVE
INTAKE:
4.08mm
EXHAUST:
2.87mm
