194-TA

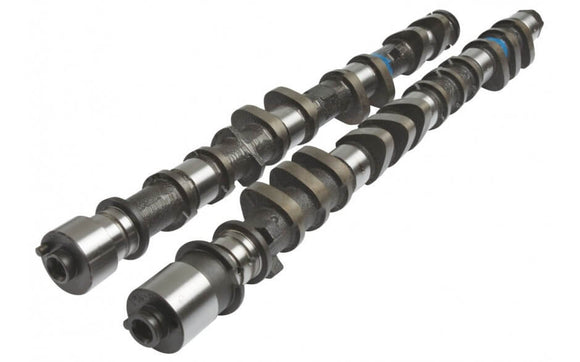

Turbocharged 4AGE engine camshaft. 264° cams work with turbo sizing 46-54mm. Still suitable for street driven engines, maintains good drivability. Retains VVT on intake. Good increase in mid-high RPM power compared to OEM cams on turbo applications. Great with E85. Kelford Cams recommends KVS51-B valve spring upgrade.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
4AGE 20V
194-TA
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.30mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
8.45mm
EXHAUST:
8.50mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
8.20mm
EXHAUST:
8.20mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
264°
EXHAUST:
264°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
228°
EXHAUST:
228°
TIMING AT
1.00mm VALVE LIFT
IVO:
6° BTDC
IVC:
54° ABDC
EVO:
47° BBDC
EVC:
1° ATDC
SUGGESTED CENTRELINES:
INTAKE:
120°
EXHAUST:
113°
LIFT AT TDC
VALVE
INTAKE:
1.30mm
EXHAUST:
1.10mm
