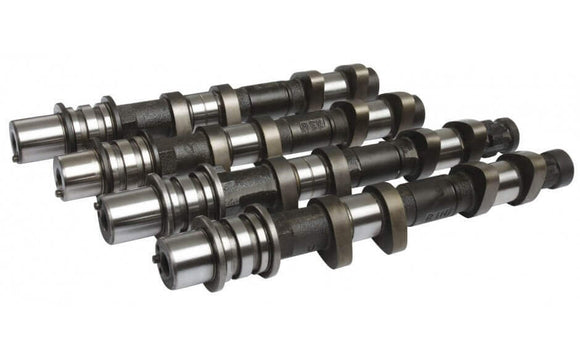

KELFORD SUBARU WRX VERSION 5+ (NON AVCS) PERFORMANCE CAM

KELFORD SUBARU WRX VERSION 5+ (NON AVCS) PERFORMANCE CAM

$1,401.01 CAD $1,474.36 CAD Save $73.35 CAD

Kelford Cams SKU: KEL199-E

Earn 1 Point on this purchase. Learn more
Description Availability

199-E

Subaru WRX EJ20 Camshaft. 272° high performance cams to suit most motorsport applications. Ideal for 58-66mm turbo. Increase in mid-high rpm power. Suits well built engines on E85. Suits stock shim on bucket. Kelford Cams recommend valve spring upgrade KVS109-STI-T or KVS1847-BT.

Camshaft Specifications

ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Subaru
EJ20/25 Version 5-6
199-E
VALVE CLEARANCE:
INTAKE:
0.20mm
SET
COLD
EXHAUST:
0.25mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
10.80mm
EXHAUST:
10.85mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
10.60mm
EXHAUST:
10.60mm
ADVERTISED DURATION AT
0.25mm
INTAKE:
274°
EXHAUST:
270°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
232°
EXHAUST:
228°
TIMING AT
1.00mm VALVE LIFT
IVO:
6° BTDC
IVC:
46° ABDC
EVO:
47° BBDC
EVC:
1° ATDC
SUGGESTED CENTRELINES:
INTAKE:
110°
EXHAUST:
113°
LIFT AT TDC
VALVE
INTAKE:
1.68mm
EXHAUST:
1.13mm

    This website does not show live stock.

    If the product is in stock we ship same/next day.

    If a product needs to be ordered in the typical wait time is 1-2 weeks.

    Shipping times vary depending if the part is in stock at our warehouse and which shipping option is chosen at checkout.

    Please contact us for an accurate ETA and availability.
