199-L

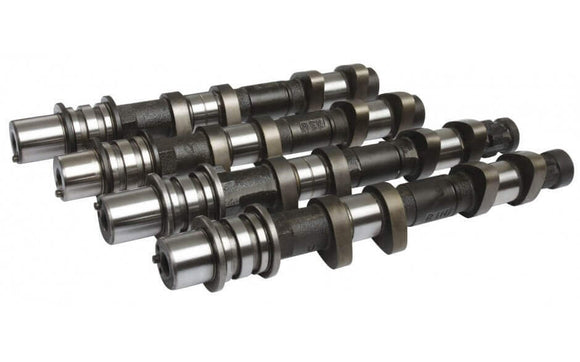

Subaru WRX Racing Camshafts. 282° High Lift EJ20 Engine Non AVCS Cams. Best suited to wide open throttle and high rpm power motorsport applications. Suits well built competition EJ20 engines running 64-72mm turbo and larger intake manifold. Great with E85 fuel. Requires cylinder head modification to fit high lift cam lobes. Must use shimless buckets. Kelford Cams recommend valve spring upgrade KVS1847-BT.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Subaru
EJ20/25 Version 5-6
199-L
VALVE CLEARANCE:
INTAKE:
0.20mm
SET
COLD
EXHAUST:
0.25mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
11.70mm
EXHAUST:
11.25mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
11.50mm
EXHAUST:
11.00mm
ADVERTISED DURATION AT
0.25mm
INTAKE:
282°
EXHAUST:
278°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
240°
EXHAUST:
236°
TIMING AT
1.00mm VALVE LIFT
IVO:
10° BTDC
IVC:
50° ABDC
EVO:
54° BBDC
EVC:
2° ATDC
SUGGESTED CENTRELINES:
INTAKE:
110°
EXHAUST:
116°
LIFT AT TDC
VALVE
INTAKE:
2.10mm
EXHAUST:
1.23mm
