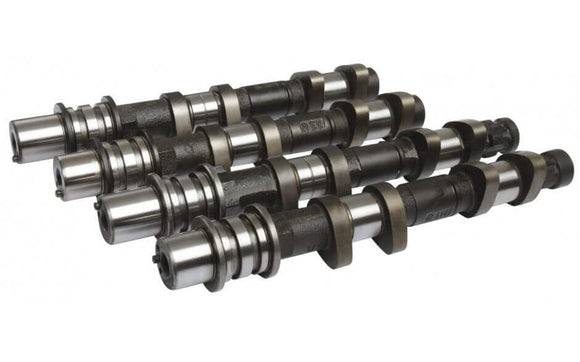

KELFORD SUBARU WRX VERSION 5+ (NON AVCS) PERFORMANCE CAM

KELFORD SUBARU WRX VERSION 5+ (NON AVCS) PERFORMANCE CAM

$1,401.01 CAD $1,474.36 CAD Save $73.35 CAD

Kelford Cams SKU: KEL199-M

Earn 1 Point on this purchase. Learn more
Description Availability

199-M

Subaru EJ20 Drag Racing Camshaft. 290° Cams to suit high boost, high RPM Racing EJ20 Non AVCS engine. Ported head with +1mm valves. 67mm+ turbo. Fuel type E85 or methanol. Kelford Cams recommend valve spring upgrade KVS1847-BT.

Camshaft Specifications

ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Subaru
EJ20/25 Version 5-6
199-M
VALVE CLEARANCE:
INTAKE:
0.20mm
SET
COLD
EXHAUST:
0.25mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
11.20mm
EXHAUST:
11.25mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
11.00mm
EXHAUST:
11.00mm
ADVERTISED DURATION AT
0.25mm
INTAKE:
292°
EXHAUST:
294°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
250°
EXHAUST:
252°
TIMING AT
1.00mm VALVE LIFT
IVO:
13° BTDC
IVC:
57° ABDC
EVO:
64° BBDC
EVC:
8° ATDC
SUGGESTED CENTRELINES:
INTAKE:
112°
EXHAUST:
118°
LIFT AT TDC
VALVE
INTAKE:
2.42mm
EXHAUST:
1.85mm
