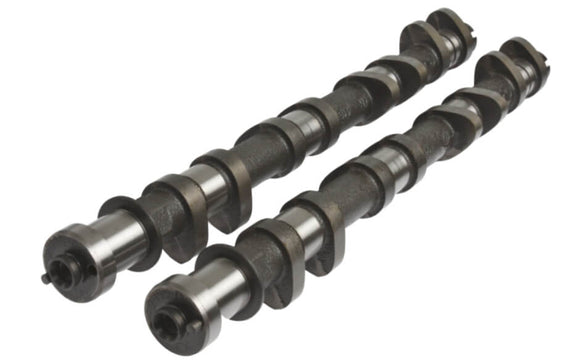

KELFORD TOYOTA 3S-GE (GEN 2) SHIM OVER BUCKET PERFORMANCE CAM

KELFORD TOYOTA 3S-GE (GEN 2) SHIM OVER BUCKET PERFORMANCE CAM

$930.11 CAD $979.01 CAD Save $48.90 CAD

Kelford Cams SKU: KEL2-195-A

Earn 1 Point on this purchase. Learn more
Description Availability

2-195-A

276°/270° cams for improved mid-high rpm power in mildly tuned NA engines. Great for rally and circuit racing. Must have free flowing intake and exhaust upgrades. Will pull to around 8.5-9k rpm depending on engine. Kelford Cams recommend KVS109-3S valve spring.

Camshaft Specifications

ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
3SGE Gen2
2-195-A
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.30mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
10.15mm
EXHAUST:
9.90mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
9.90mm
EXHAUST:
9.60mm
ADVERTISED DURATION AT
0.30mm
INTAKE:
276°
EXHAUST:
270°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
240°
EXHAUST:
232°
TIMING AT
1.00mm VALVE LIFT
IVO:
17° BTDC
IVC:
43° ABDC
EVO:
43° BBDC
EVC:
9° ATDC
SUGGESTED CENTRELINES:
INTAKE:
103°
EXHAUST:
107°
LIFT AT TDC
VALVE
INTAKE:
2.80mm
EXHAUST:
1.92mm




This website does not show live stock.

If the product is in stock we ship same/next day.

If a product needs to be ordered in the typical wait time is 1-2 weeks.

Shipping times vary depending if the part is in stock at our warehouse and which shipping option is chosen at checkout.

Please contact us for an accurate ETA and availability.
