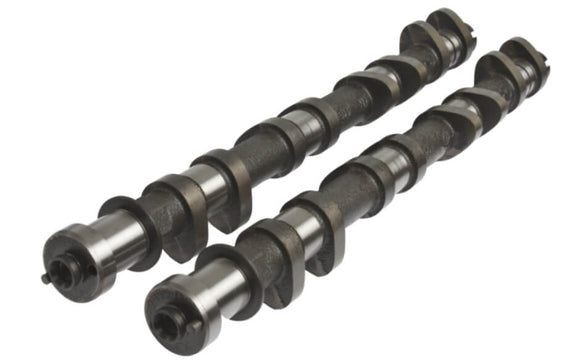

2-195-B
290°/274° cams for improved mid-high rpm power in tuned NA engines. Great for rally and circuit racing. Must have free flowing intake and exhaust upgrades. Suits higher compression ratio. Will pull to around 9k-9.5k rpm depending on engine. Kelford Cams recommend KVS109-3S valve spring.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
3SGE Gen2
2-195-B
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.30mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
10.85mm
EXHAUST:
10.20mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
10.60mm
EXHAUST:
9.90mm
ADVERTISED DURATION AT
0.30mm
INTAKE:
290°
EXHAUST:
274°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
252°
EXHAUST:
236°
TIMING AT
1.00mm VALVE LIFT
IVO:
26° BTDC
IVC:
46° ABDC
EVO:
43° BBDC
EVC:
13° ATDC
SUGGESTED CENTRELINES:
INTAKE:
100°
EXHAUST:
105°
LIFT AT TDC
VALVE
INTAKE:
3.82mm
EXHAUST:
2.51mm
