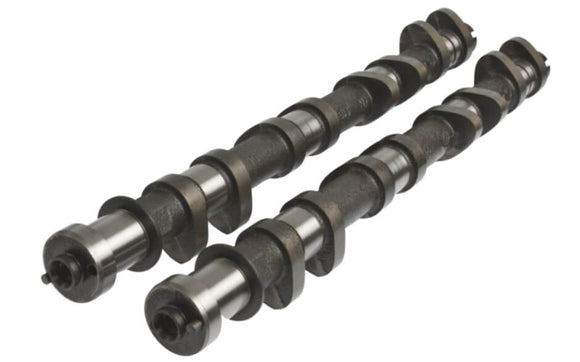

2-195-D
Naturally aspirated racing cams to suit engines with high compression (12:1+), ported cylinder head with big valves and well designed intake (45mm+ ITBs) and exhaust system. More top end power than the 'C' cam, pulling to around 10k+ rpm depending on engine. Great for very lightweight chassis for circuit racing with close ratio gearbox. Also suits All Motor drag racing cars. Kelford Cams recommend KVS109-3S valve spring.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
3SGE Gen2
2-195-D
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.30mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
10.85mm
EXHAUST:
10.55mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
10.60mm
EXHAUST:
10.25mm
ADVERTISED DURATION AT
0.30mm
INTAKE:
314°
EXHAUST:
302°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
272°
EXHAUST:
262°
TIMING AT
1.00mm VALVE LIFT
IVO:
37° BTDC
IVC:
55° ABDC
EVO:
53° BBDC
EVC:
29° ATDC
SUGGESTED CENTRELINES:
INTAKE:
99°
EXHAUST:
102°
LIFT AT TDC
VALVE
INTAKE:
4.78mm
EXHAUST:
4.40mm
