207-A

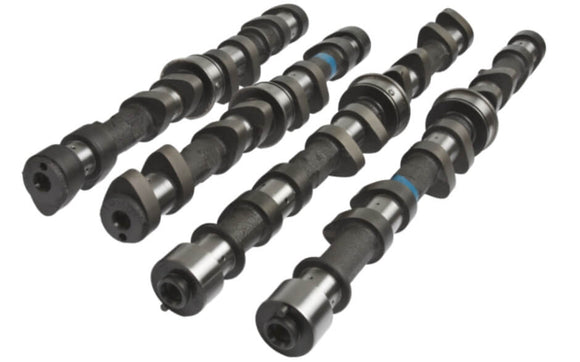

Performance cams for near stock Toyota 1UZ-FE engines. Good upgrade for street cars, tow vehicles or jet boats to improve low to mid-range power. Designed to drop-in on OEM valve springs. Maintains good drivability. For high mileage engines Kelford Cams recommend KVS1UZ valve spring.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
1UZFE
207-A
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.30mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
8.35mm
EXHAUST:
8.30mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
8.10mm
EXHAUST:
8.00mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
268°
EXHAUST:
274°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
206°
EXHAUST:
222°
TIMING AT
1.00mm VALVE LIFT
IVO:
6° ATDC
IVC:
32° ABDC
EVO:
42° BBDC
EVC:
0° TDC
SUGGESTED CENTRELINES:
INTAKE:
109°
EXHAUST:
111°
LIFT AT TDC
VALVE
INTAKE:
0.54mm
EXHAUST:
0.93mm
