207-D

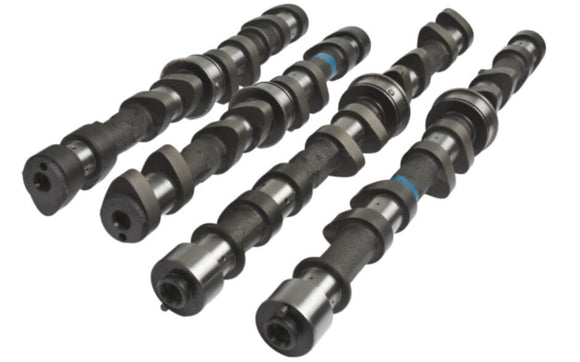

274° NA performance cams for modified Toyota 1UZ-FE racing engines with intake and exhaust upgrades. Improved mid-range to high rpm power. Kelford Cams recommend KVS1UZ valve spring.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
1UZFE
207-D
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.30mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
9.85mm
EXHAUST:
9.90mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
9.60mm
EXHAUST:
9.60mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
272°
EXHAUST:
272°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
232°
EXHAUST:
232°
TIMING AT
1.00mm VALVE LIFT
IVO:
10° BTDC
IVC:
42° ABDC
EVO:
44° BBDC
EVC:
8° ATDC
SUGGESTED CENTRELINES:
INTAKE:
106°
EXHAUST:
108°
LIFT AT TDC
VALVE
INTAKE:
2.05mm
EXHAUST:
1.83mm
