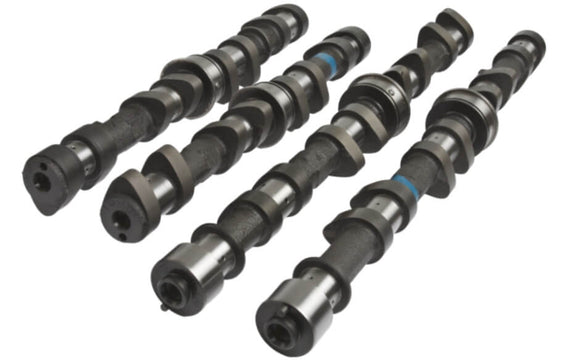

KELFORD LEXUS 1UZ-FE PERFORMANCE CAM

KELFORD LEXUS 1UZ-FE PERFORMANCE CAM

$1,743.30 CAD $1,834.71 CAD Save $91.41 CAD

Kelford Cams SKU: KEL207-E

Earn 1 Point on this purchase. Learn more
Description Availability

207-E

286° NA cams for well modified Toyota 1UZ-FE racing engines. Suits engines with higher compression, ported heads, free flowing intake such as individual throttles and well designed exhaust system. Designed for high rpm power in track cars. Kelford Cams recommend KVS1UZ valve spring.

Camshaft Specifications

ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
1UZFE
207-E
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.30mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
9.90mm
EXHAUST:
9.95mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
9.65mm
EXHAUST:
9.65mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
286°
EXHAUST:
286°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
246°
EXHAUST:
246°
TIMING AT
1.00mm VALVE LIFT
IVO:
19° BTDC
IVC:
47° ABDC
EVO:
47° BBDC
EVC:
19° ATDC
SUGGESTED CENTRELINES:
INTAKE:
104°
EXHAUST:
104°
LIFT AT TDC
VALVE
INTAKE:
3.00mm
EXHAUST:
3.00mm
