207-G

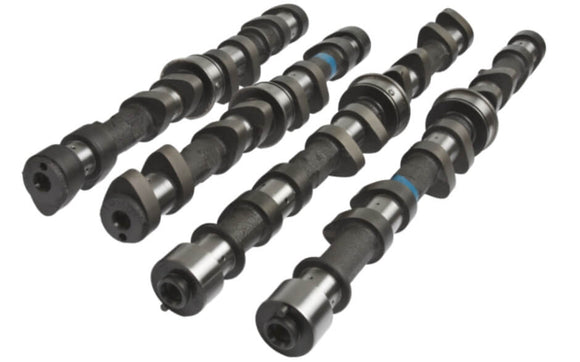

294° NZ superstock stage 2 racing cams to suit fully modified racing engines with 430+HP. Must use shimless cam buckets or shim under conversion. Designed to suit engines built to Speedway NZ rules, 10:1 compression ratio. Kelford Cams recommend KVS207 valve spring.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
1UZFE
207-G
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.30mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
10.95mm
EXHAUST:
10.65mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
10.70mm
EXHAUST:
10.35mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
294°
EXHAUST:
294°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
249°
EXHAUST:
243°
TIMING AT
1.00mm VALVE LIFT
IVO:
24.5° BTDC
IVC:
44.5° ABDC
EVO:
43.5° BBDC
EVC:
19.5° ATDC
SUGGESTED CENTRELINES:
INTAKE:
100°
EXHAUST:
102°
LIFT AT TDC
VALVE
INTAKE:
3.56mm
EXHAUST:
3.15mm
