207-T1

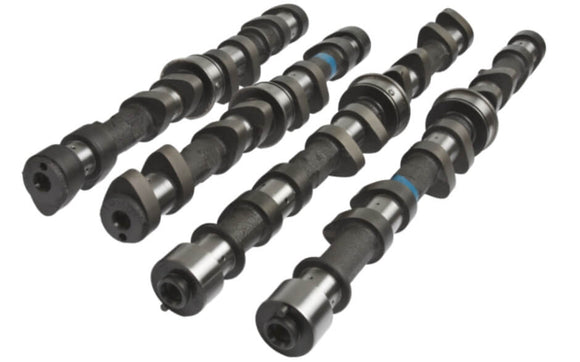

264° cams for mild turbocharged Toyota 1UZ-FE engines. Still maintains good drivability and throttle response for street cars. Suits single 58-64mm turbo or twin 48-54mm turbos. Improved mid-range power over OEM cams. Great with E85 and similar ethanol blend fuels. Kelford Cams recommend KVS1UZ valve spring.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
1UZFE
207-T1
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.30mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
9.60mm
EXHAUST:
9.65mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
9.35mm
EXHAUST:
9.35mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
264°
EXHAUST:
264°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
224°
EXHAUST:
224°
TIMING AT
1.00mm VALVE LIFT
IVO:
3° BTDC
IVC:
41° ABDC
EVO:
46° BBDC
EVC:
2° BTDC
SUGGESTED CENTRELINES:
INTAKE:
109°
EXHAUST:
114°
LIFT AT TDC
VALVE
INTAKE:
1.26mm
EXHAUST:
0.77mm
