207-T2

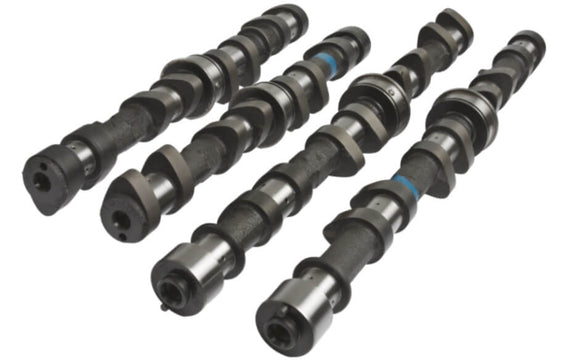

270°/280° cams for turbocharged Toyota 1UZ-FE racing engines running big boost and high RPM. Designed for engines making an excess of 800hp. Single turbo sizing 64mm+. Twin turbo sizing 54-58mm. Still suits OEM shim on top of bucket. Great with E85. Kelford Cams recommend KVS207 valve spring kit.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
1UZFE
207-T2
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.30mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
10.15mm
EXHAUST:
9.90mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
9.90mm
EXHAUST:
9.60mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
270°
EXHAUST:
280°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
240°
EXHAUST:
248°
TIMING AT
1.00mm VALVE LIFT
IVO:
10° BTDC
IVC:
50° ABDC
EVO:
60° BBDC
EVC:
8° ATDC
SUGGESTED CENTRELINES:
INTAKE:
110°
EXHAUST:
116°
LIFT AT TDC
VALVE
INTAKE:
2.00mm
EXHAUST:
1.79mm
