208-E

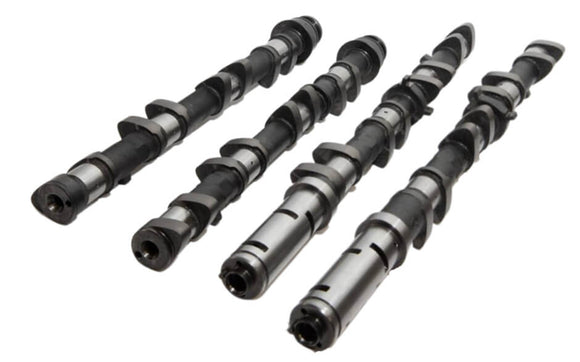

292°/294° NZ superstock stage 2 racing cams to suit professionally built naturally aspirated racing engines making around 550HP. Revving to around 9500rpm. Designed to suit engines built to Speedway NZ rules, 10:1 compression ratio. Cylinder head requires modification. Cam base circle is 0.060" smaller than OEM. Must use KVS208 valve spring and retainer kit.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
1UZ-3UZ VVTi
208-E
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.35mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
12.25mm
EXHAUST:
11.75mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
12.00mm
EXHAUST:
11.40mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
292°
EXHAUST:
290°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
258°
EXHAUST:
254°
TIMING AT
1.00mm VALVE LIFT
IVO:
27° BTDC
IVC:
51° ABDC
EVO:
53° BBDC
EVC:
21° ATDC
SUGGESTED CENTRELINES:
INTAKE:
102°
EXHAUST:
106°
LIFT AT TDC
VALVE
INTAKE:
4.01mm
EXHAUST:
3.18mm
