213-A

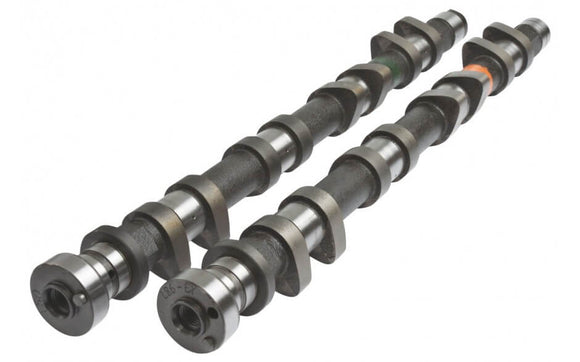

Stage 1 drop-in cams for turbocharged or naturally aspirated engines. Good throttle response. Suits small frame 46-54mm turbos for turbocharged applications. Kelford Cams recommend valve spring KVS24.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Nissan
KA24/DE/DET
213-A
VALVE CLEARANCE:
INTAKE:
0.20mm
SET
COLD
EXHAUST:
0.20mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
9.58mm
EXHAUST:
9.58mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
9.38mm
EXHAUST:
9.38mm
ADVERTISED DURATION AT
0.30mm
INTAKE:
260°
EXHAUST:
260°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
222°
EXHAUST:
222°
TIMING AT
1.00mm VALVE LIFT
IVO:
1° BTDC
IVC:
41° ABDC
EVO:
43° BBDC
EVC:
1° BTDC
SUGGESTED CENTRELINES:
INTAKE:
110°
EXHAUST:
112°
LIFT AT TDC
VALVE
INTAKE:
1.20mm
EXHAUST:
1.00mm
