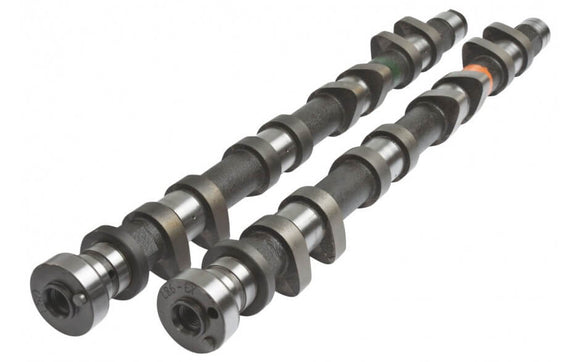

213-C
Stage 3 278° high lift cams to suit engines running a 58mm-66mm turbo. Best suited for wide open throttle and high rpm power. Cylinder head machining for cam lobe clearance required. Kelford Cams recommend valve spring KVS24.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Nissan
KA24/DE/DET
213-C
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.25mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
11.25mm
EXHAUST:
11.25mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
11.00mm
EXHAUST:
11.00mm
ADVERTISED DURATION AT
0.30mm
INTAKE:
278°
EXHAUST:
278°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
236°
EXHAUST:
236°
TIMING AT
1.00mm VALVE LIFT
IVO:
8° BTDC
IVC:
48° ABDC
EVO:
54° BBDC
EVC:
2° ATDC
SUGGESTED CENTRELINES:
INTAKE:
110°
EXHAUST:
116°
LIFT AT TDC
VALVE
INTAKE:
1.83mm
EXHAUST:
1.20mm
