213-D

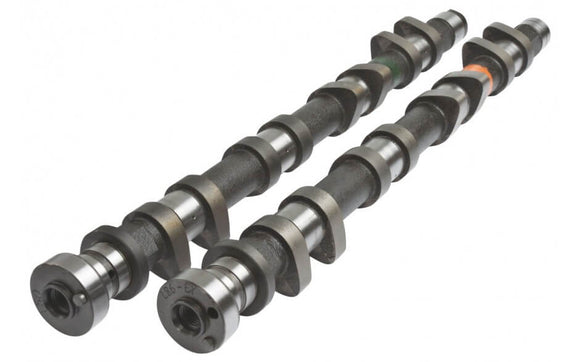

Stage 4 282°/288° drag racing cams. Suits professionally built race engines with ported head and +1mm valves. Suits 68mm+ turbo for 1000+hp. Fuel type E85 or methanol. Head machining required for high lift cams.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Nissan
KA24/DE/DET
213-D
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.25mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
11.75mm
EXHAUST:
11.25mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
11.50mm
EXHAUST:
11.00mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
282°
EXHAUST:
288°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
244°
EXHAUST:
250°
TIMING AT
1.00mm VALVE LIFT
IVO:
10° BTDC
IVC:
54° ABDC
EVO:
63° BBDC
EVC:
7° ATDC
SUGGESTED CENTRELINES:
INTAKE:
112°
EXHAUST:
118°
LIFT AT TDC
VALVE
INTAKE:
2.05mm
EXHAUST:
1.67mm
