214-A

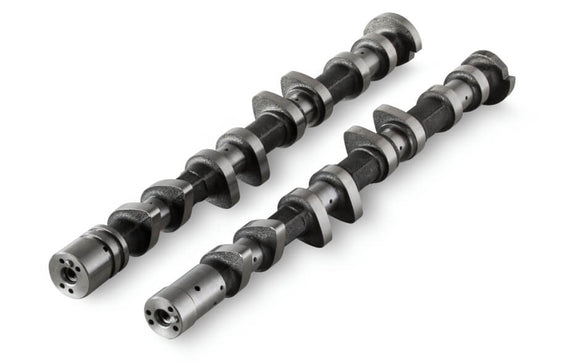

264° performance cams for improved low to mid-range power and good throttle response. Ideal for 54mm-60mm turbos. Can retain OEM valve spring up to stock boost and rpm limit. Otherwise Kelford Cams recommend KVS11 for up to 32psi boost and 9000rpm.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Mitsubishi
4B11T
214-A
VALVE CLEARANCE:
INTAKE:
0.30mm
SET
COLD
EXHAUST:
0.35mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
10.30mm
EXHAUST:
9.65mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
10.00mm
EXHAUST:
9.30mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
264°
EXHAUST:
252°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
226°
EXHAUST:
212°
TIMING AT
1.00mm VALVE LIFT
SUGGESTED CENTRELINES:
INTAKE:
mivec
EXHAUST:
mivec
LIFT AT TDC
