214-B

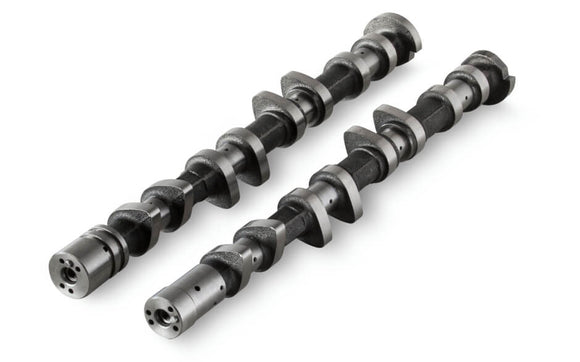

Mitsubishi Lancer EVO X - 270° high performance camshafts to suit most motorsport applications. Suits 58mm-66mm turbo running the 350-550hp range. Requires valve spring upgrade. Kelford Cams recommend KVS11 for up to 32psi boost and 9000rpm.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Mitsubishi
4B11T
214-B
VALVE CLEARANCE:
INTAKE:
0.30mm
SET
COLD
EXHAUST:
0.35mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
11.30mm
EXHAUST:
10.35mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
11.00mm
EXHAUST:
10.00mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
270°
EXHAUST:
262°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
228°
EXHAUST:
220°
TIMING AT
1.00mm VALVE LIFT
IVO:
IVC:
EVO:
EVC:
SUGGESTED CENTRELINES:
INTAKE:
mivec
EXHAUST:
mivec
LIFT AT TDC
INTAKE:
EXHAUST:
